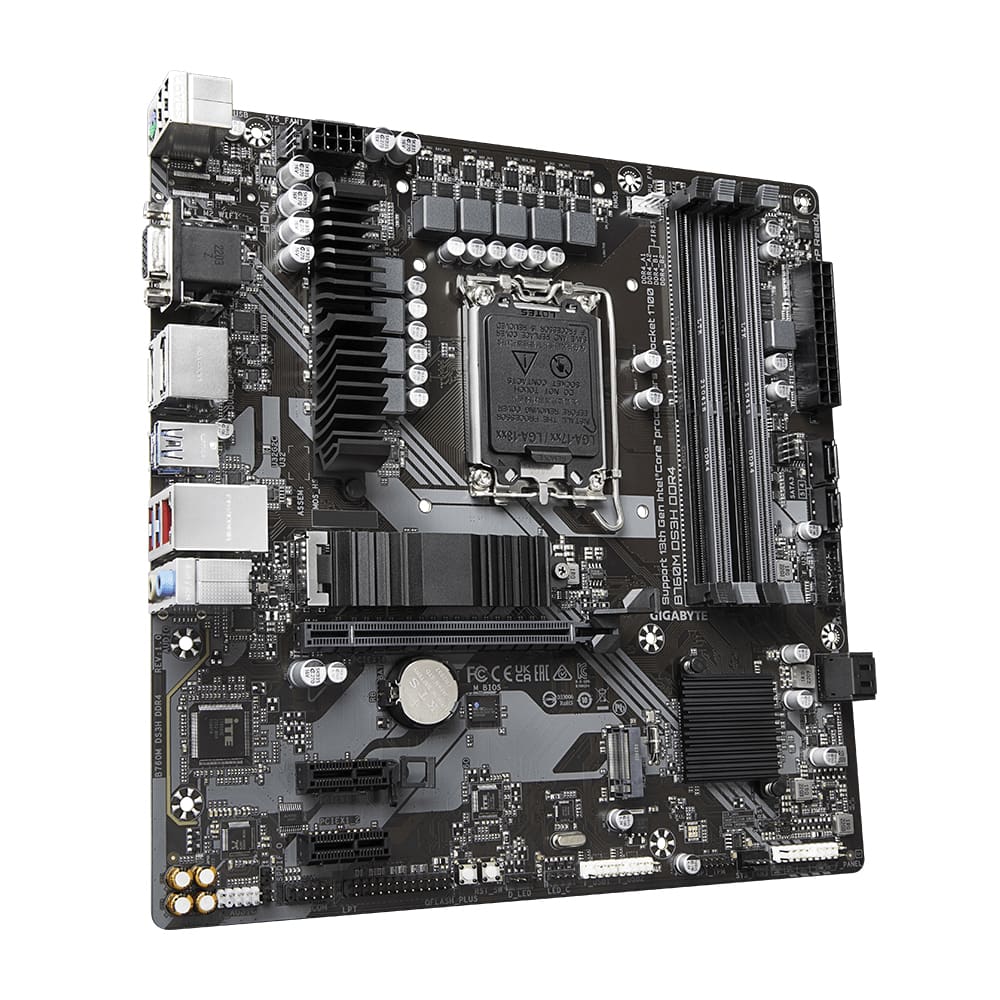

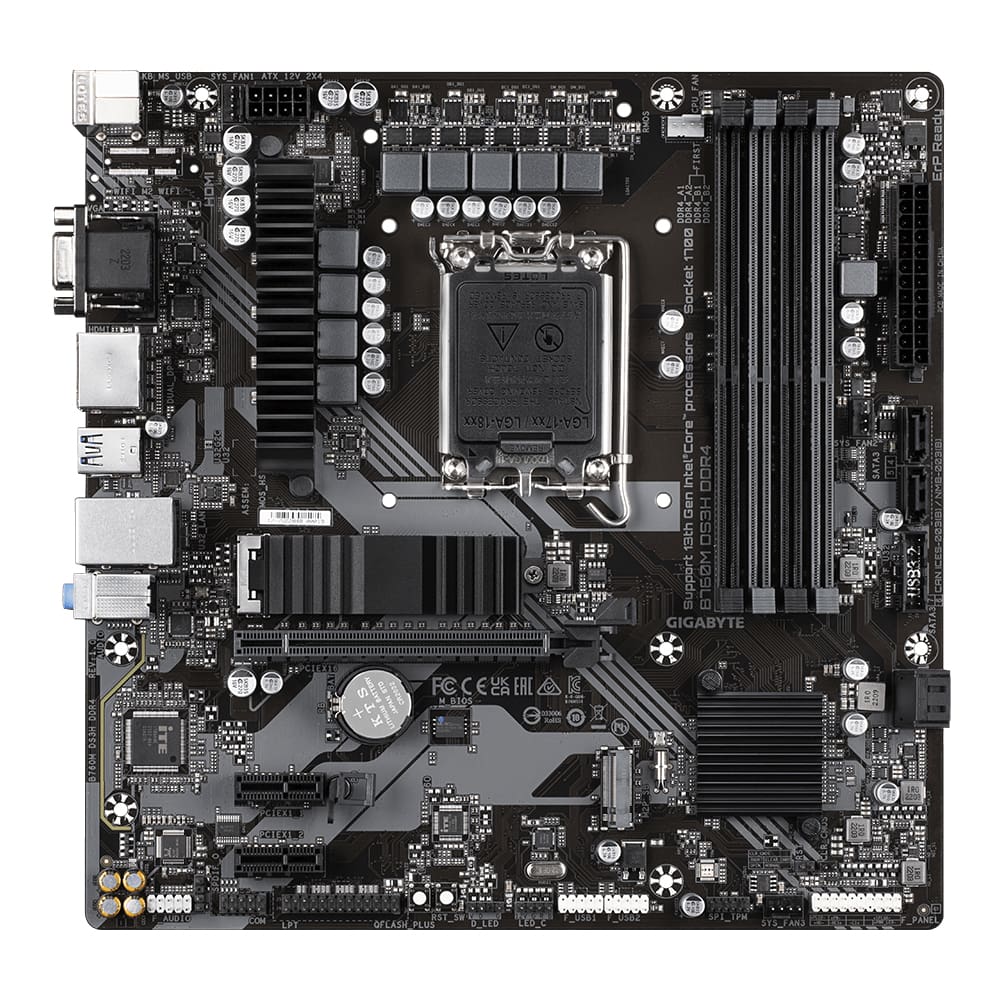

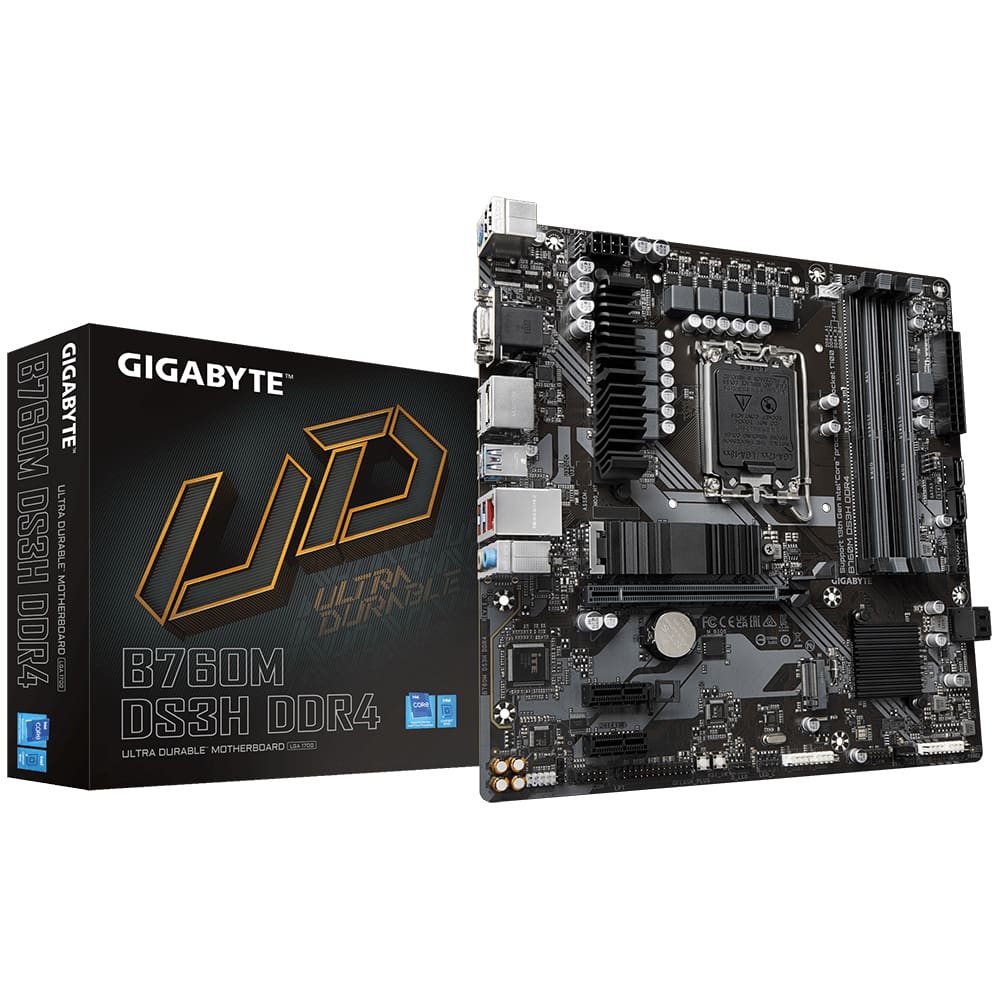

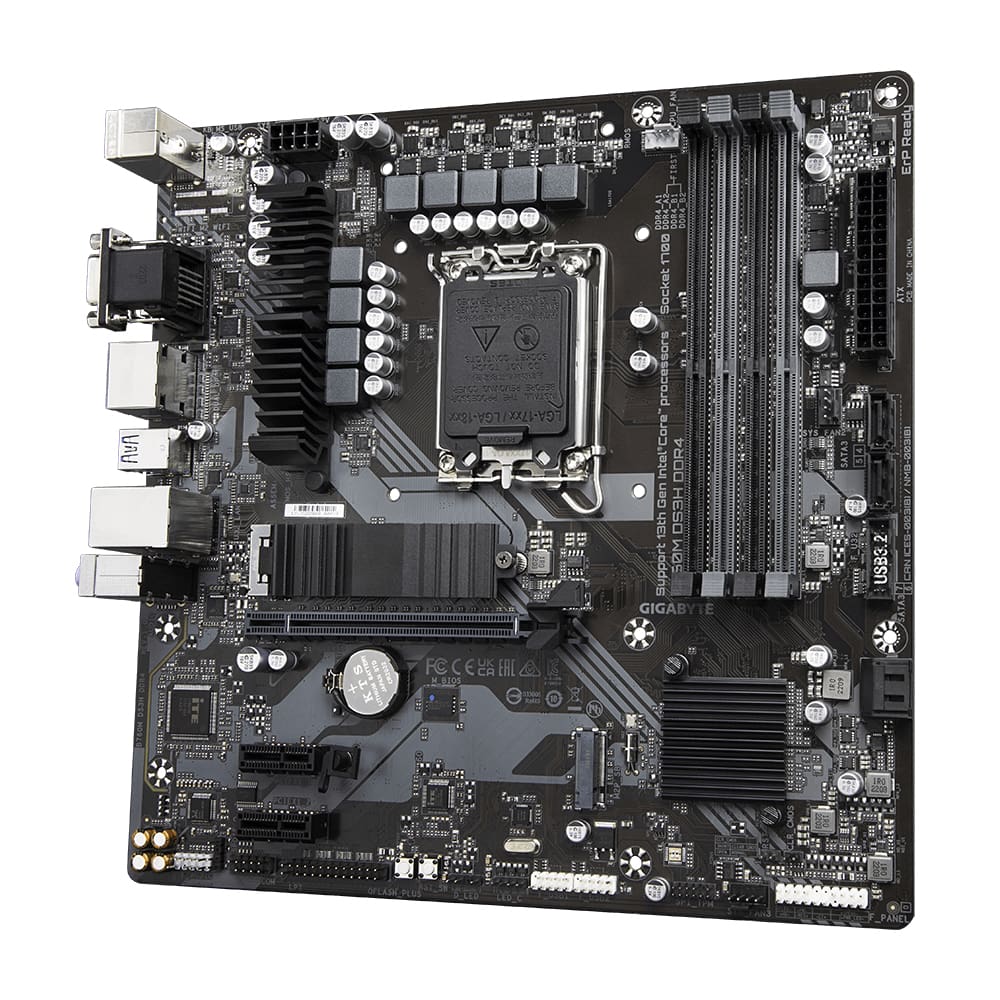

Gigabyte-B760M DS3H DDR4-Motherboard

• LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• L3 cache varies with CPU

• 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

• AMD Wi-Fi 6E RZ608
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• Intel® Wi-Fi 6E AX210

Chipset:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
• Chipset+2 USB 2.0 Hubs
• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 2 x USB 2.0/1.1 ports

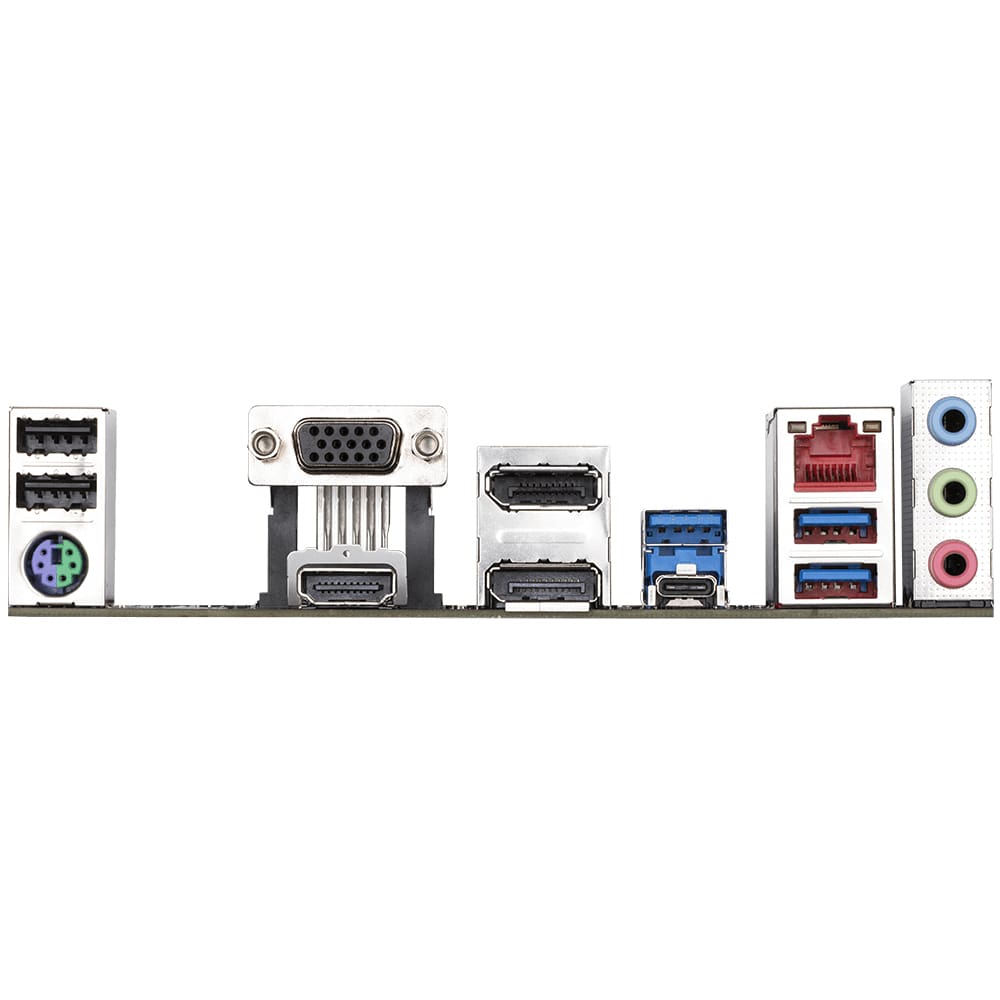

• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 3 x audio jacks

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
